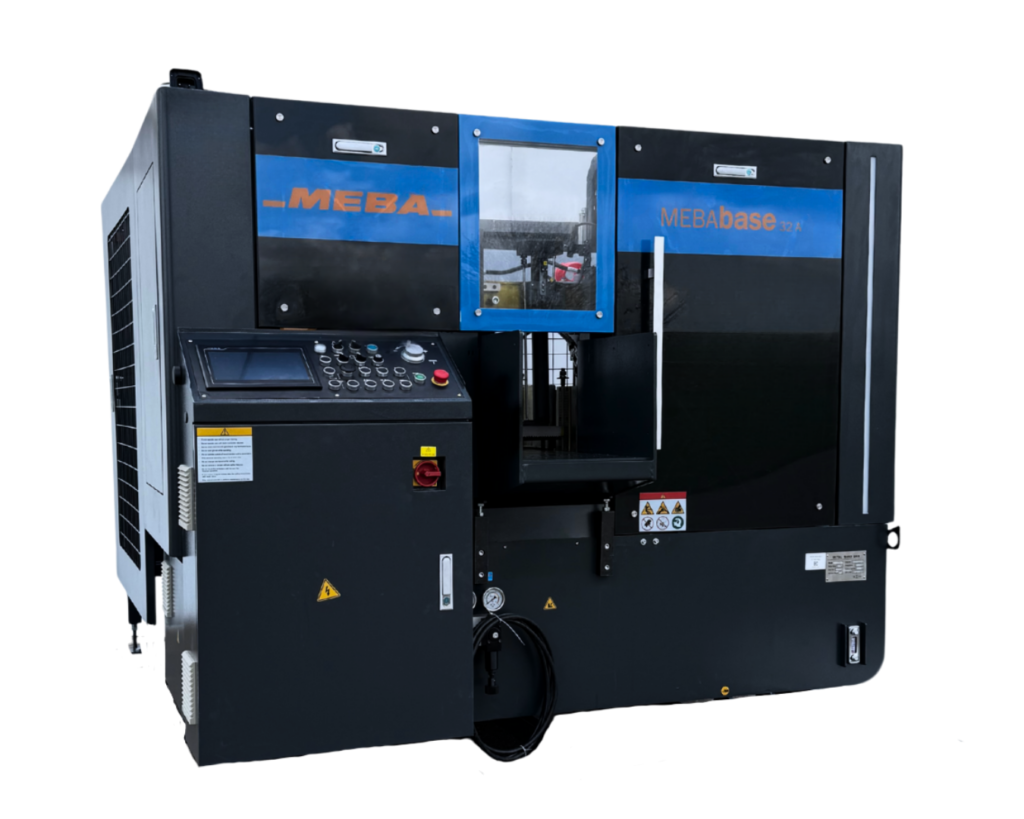

MEBAbase 32 A
MEBAbase: The must-have for doers. The saws in the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. With the MEBAbase 32 A, you are choosing a straight-cut automatic saw with sophisticated technology. Standard equipment Fully enclosed automatic band saw for safe, clean, and q...
Description
MEBAbase: The must-have for doers.
The saws in the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. With the MEBAbase 32 A, you are choosing a straight-cut automatic saw with sophisticated technology.
Standard equipment
- Fully enclosed automatic band saw for safe, clean, and quiet operation; easily accessible thanks to large access doors
- Stability and quality thanks to torsion-resistant welded construction
- Side band guide combines preloaded carbide slide guides and band twist rollers
- Hydraulic saw feed
- Infinitely variable saw feed speed from 1–300 mm/min
- Self-regulating cutting parameters and temperature-independent cutting pressure regulation: Process reliability through continuous hydraulic cutting pressure and feed monitoring and automatic adjustment of the saw feed speed if the cutting pressure is too high.
- Cut progression control and saw blade breakage monitoring
- Infinitely variable cutting speed 10–80 m/min
- Large coolant reservoir (approx. 90 liters)
- Automatic belt breakage monitoring with shutdown in case of belt breakage
- Hydraulic band saw tensioning
- Laser light for cut line indication
- Optimal cleaning of the tooth edge: a powered round brush removes dirt and chips from the saw blade
- Hydraulic bundle tensioning
- Automatic material feed with hydraulic full-stroke material clamping
- Stable, linearly guided slide-in clamping vice for maximum positioning accuracy
- Integrated work light
- Integrated material end detection
- Integrated roller conveyor with push-in clamping device; closed roller conveyor
- Opening the slide-in clamping device on both sides
- Hydraulic clamping pressure regulation for the insert and main clamping block
- Hydraulic chip conveyor, continuously adjustable
- Convenient disposal of parts via storage table
- Movable/adjustable deflector plate
- Robust panel controller with touchscreen, menu-driven, self-explanatory symbols
- Fully automatic sawing process for any length and number of pieces
- Height measurement system for optimal positioning of the saw frame
- Easy program creation and management, manual and automatic operation
- Foldable traffic light/status light, red/green, for quickly visible machine status
- Programmable central lubrication of the linear guide on the slide clamp
Specifications subject to change without notice.Â
Technical Attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 320 mm / 320 x 320 mm |
| Working Area | 320 x 320 mm |
| Automation | Automatic |
| Recommended Use | Serial production, Straight cutting |
